PRODUCTS

Winding machine



Product overview

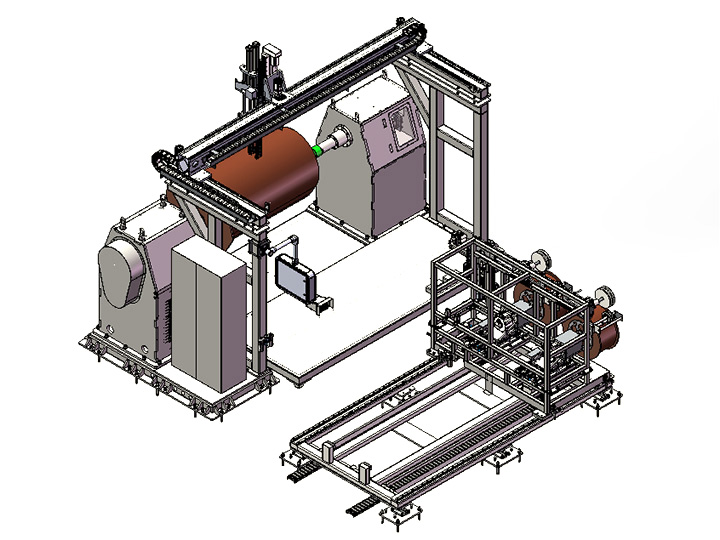

The RSGRXJ-GD series products are assembled and welded with thick plates and rectangular tubes on the rack. Internally, a servo motor is used to control rotation, and the unwinding system uses a servo motor to unwind and unwind the wire.
Applied in the power industry, it can be used in conjunction with specialized equipment such as assembly lines. Unroll the cable for the coil. It has the characteristics of high load capacity, wide travel, safety and efficiency, and is the main equipment for assembling power reactors. Essential equipment for improving work efficiency.
Usage scenario: The role of unwinding wires in the power industry.

Product parameters
Coil size mm Unwinding speed r/min Axial stroke mm Carrying capacity T Radial stroke mm
800
120
1000
0.5
500
1200 100 1500 1 800
1800 75 2000 3 1000
2200 50 2500 5 1500
Note: Customizable according to customer requirements
